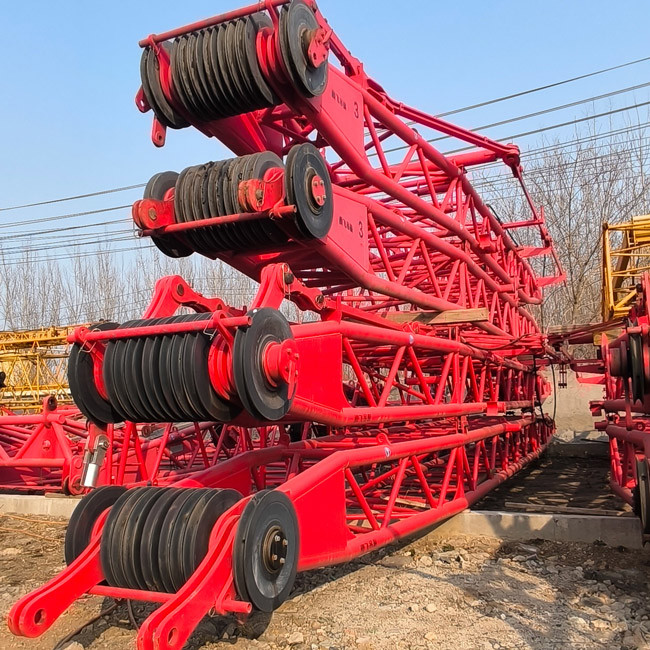

Construction 650T Crawler Crane 895 KW Engine Power / Mobile Crawler Crane
Product Details:
| Place of Origin: | China |
| Brand Name: | SANY |
| Model Number: | SCC6500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | One Crane |
|---|---|
| Price: | Negotiable Price |
| Packaging Details: | Packing According to Customer Requirements |
| Delivery Time: | According to Order Confirmation |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |
|
Detail Information |
|||
| Counterweight: | 150 Tons | Slewing Speed: | 1.5 Rpm |
|---|---|---|---|
| Transport Weight: | 650 Tons | Travel Speed: | 1.5 Km/h |
| Max Operating Radius: | 8 Meters | Boom Length: | 18-96 Meters |
| Max Wind Speed: | 20 M/s | Max Lifting Capacity: | 650 Tons |
| Engine Power: | 895 KW | Max Hoist Speed: | 120 Meters Per Minute |
| Max Tip Height: | 120 Meters | Max Ground Pressure: | 0.9 Kg/cm² |
| Max Load Moment: | 6500 Ton-meters | Max Line Speed: | 120 Meters Per Minute |
| Highlight: | construction 650t crawler crane,construction mobile crawler crane,650 tons 650t crawler crane |
||
Product Description
650T Crawler Crane Is Versatile In Various Construction Scenarios
SCC6500 Crawler Crane Technical Specifications
Detailed Introduction
The upper part
Engine
The eight-cylinder, water-cooled engine has a rated power of 400Kw;
Rated speed is 2000rpm;
Maximum output torque is 2630N·m;
Speed at maximum output torque is 1200rpm.
Eight-cylinder, water-cooled engine with rated power of 400Kw;
Rated speed of 2000rpm;
Maximum output torque of 2650N·m;
Speed at maximum output torque of 1400rpm.
Control System
Imported RC controller, encoder, torque limiter, display, intelligent sensor and closed-circuit monitoring system are used. CAN Bus is used for data transmission between the controller, display, operating handle, encoder, engine and torque limiter, which improves the reliability of the system.
Hydraulic system
The hydraulic system includes: lifting hydraulic system, traveling hydraulic system, slewing hydraulic system, luffing hydraulic system, servo hydraulic system, anti-tilt hydraulic system, cooling system, auxiliary hydraulic system, etc. The main hydraulic components are imported hydraulic products.
Features: The main system adopts closed circuit, which is energy-saving, efficient and controllable; starting, stopping and switching are smooth, without impact, fast operation response, low heat generation and long service life. Electric proportional control elements are widely used to facilitate accurate and intelligent control.
Main and auxiliary lifting mechanism
The variable hydraulic motor drives the planetary gear reducer to control the lifting and lowering of the main lift Ⅰ and the main lift Ⅱ. It has good micro-speed performance.
The fastest gear can realize the rapid power lifting of the main lift Ⅰ and the main lift Ⅱ. One lift can be used for lifting weights below 325t, and two lifts must work simultaneously for lifting weights above 325t. The main lift Ⅰ and the main lift Ⅱ have synchronization function. The maximum ratio is 48. The multi-layer winding of the folding drum ensures that the rope is not tangled. The reducer has the characteristics of low noise, high efficiency, long service life and convenient oil change.
|
Main lifting mechanism
|
Roll diameter |
630mm |
|
Outermost working layer rope speed |
0~110m/min |
|
|
Wire rope diameter |
28mm |
|
|
Main winch wire rope length |
1180m |
|
|
Rated single rope tension |
16.4t |
|
|
Auxiliary lifting mechanism
|
Roll diameter |
630mm |
|
Outermost working layer rope speed |
0~105m/min |
|
|
Wire rope diameter |
28mm |
|
|
Auxiliary winch wire rope length |
665m |
|
|
Rated single rope tension |
16.4t |
