1.2 Km/H 220T Crawler Crane Xcmg In Heavy Machinery Handling And Improve Production Efficiency
Product Details:
| Place of Origin: | China |
| Brand Name: | XCMG |
| Model Number: | XLC220 |
Payment & Shipping Terms:
| Minimum Order Quantity: | One Crane |
|---|---|
| Price: | Negotiable Price |
| Packaging Details: | Packing According to Customer Requirements |
| Delivery Time: | According to Order Confirmation |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |
|
Detail Information |
|||
| Jib Angle: | 15,30° | Operation Weight: | 48.6 T |
|---|---|---|---|
| Jib Length: | 60 Meters | Maximum Gradeability: | 30% |
| Weight: | 24.6 T | Max Lifting Height: | 93/106.5m |
| Max Boom Length: | 13m-52m | Fly Jib Length: | 13-25 M |
| Engine Rated Power: | 242 /2100 Kw/rpm | Gradeability: | 30% |
| Max Travel Speed: | 1.2 Km/h | Condition: | Used, In Good Working Condition |
| Highlight: | 220t crawler crane xcmg,220t xcmg crawler crane,1.2 km/h crawler crane xcmg |
||
Product Description

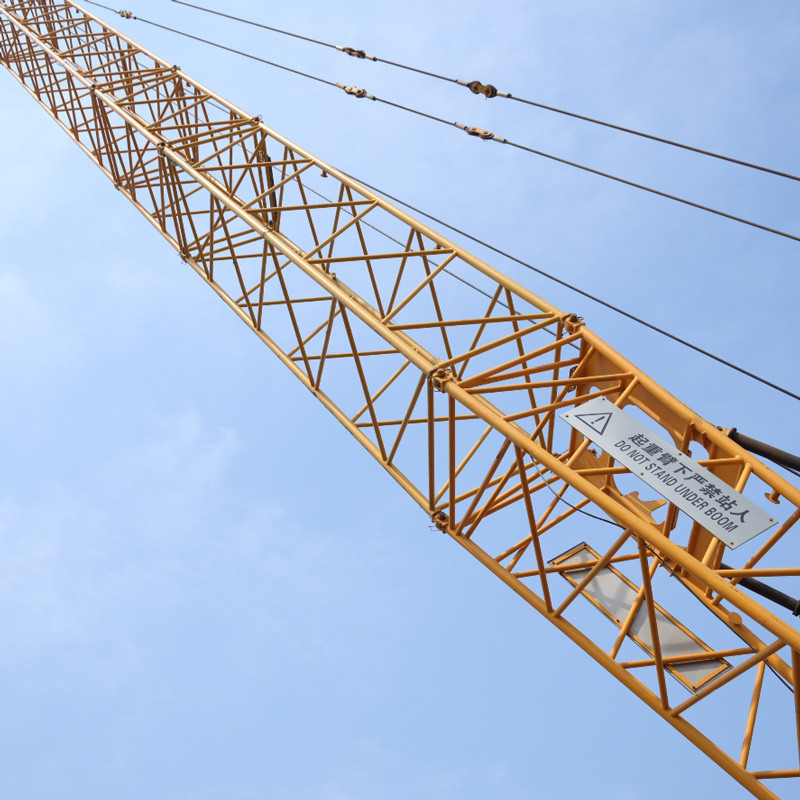

220T Crawler Crane Can Play A Key Role In Heavy Machinery Handling And Improve Production Efficiency
XLC220 Crawler Crane Technical Specifications
Crawler crane models: XLC220
Max rated lifting capacity: 220t
Max lifting moment: 1239t.m
Typical working conditions
Main boom working condition_HBS/1_75t+21t main boom main hook performance with arm end pulley auxiliary hook
|
Operating radius(m)
|
Main boom length(m) |
|||||||||||
|
17 |
20 |
23 |
26 |
29 |
32 |
35 |
38 |
41 |
44 |
47 |
50 |
|
|
5 |
220.0 |
|
|
|
|
|
|
|
|
|
|
|
|
6 |
196.0 |
192.0 |
190.5 |
179.0 |
|
|
|
|
|
|
|
|
|
7 |
177.0 |
176.0 |
174.5 |
173.5 |
167.0 |
156.0 |
144.0 |
|
|
|
|
|
|
8 |
154.5 |
154.0 |
153.5 |
151.9 |
147.3 |
144.7 |
138.2 |
127.0 |
115.0 |
103.0 |
|
|
|
9 |
136.0 |
136.0 |
135.2 |
133.4 |
131.0 |
127.0 |
124.0 |
121.0 |
109.0 |
103.0 |
101.0 |
|
|
10 |
115.0 |
115.0 |
116.0 |
116.0 |
115.0 |
112.0 |
110.0 |
107.0 |
105.0 |
102.0 |
99.0 |
91.0 |
|
12 |
87.5 |
87.9 |
88.2 |
88.3 |
88.4 |
88.4 |
88.4 |
87.2 |
85.5 |
83.8 |
82.2 |
80.6 |
|
14 |
69.7 |
70.2 |
70.5 |
70.6 |
70.7 |
70.7 |
70.6 |
70.6 |
70.5 |
70.3 |
69.1 |
67.8 |
|
16 |
57.4 |
58.0 |
58.3 |
58.4 |
58.5 |
58.5 |
58.4 |
58.3 |
58.3 |
58.1 |
58.0 |
57.9 |
|
18 |
|
49.0 |
49.3 |
49.5 |
49.6 |
49.5 |
49.5 |
49.4 |
49.3 |
49.2 |
49.1 |
48.9 |
|
20 |
|
|
42.5 |
42.6 |
42.7 |
42.7 |
42.7 |
42.6 |
42.5 |
42.4 |
42.2 |
42.1 |
|
22 |
|
|
|
37.2 |
37.4 |
37.3 |
37.3 |
37.2 |
37.1 |
37.0 |
36.9 |
36.7 |
|
24 |
|
|
|
32.8 |
33.0 |
33.0 |
33.0 |
32.9 |
32.8 |
32.6 |
32.5 |
32.3 |
|
26 |
|
|
|
|
29.3 |
29.4 |
29.4 |
29.3 |
29.2 |
29.1 |
28.9 |
28.7 |
|
28 |
|
|
|
|
|
26.3 |
26.3 |
26.2 |
26.2 |
26.0 |
25.9 |
25.7 |
|
30 |
|
|
|
|
|
|
23.7 |
23.7 |
23.6 |
23.5 |
23.3 |
23.1 |
|
32 |
|
|
|
|
|
|
21.5 |
21.4 |
21.4 |
21.2 |
21.1 |
20.9 |
|
34 |
|
|
|
|
|
|
|
19.5 |
19.4 |
19.3 |
19.2 |
19.0 |
|
36 |
|
|
|
|
|
|
|
|
17.7 |
17.6 |
17.4 |
17.3 |
|
38 |
|
|
|
|
|
|
|
|
|
16.0 |
15.9 |
15.8 |
|
40 |
|
|
|
|
|
|
|
|
|
14.7 |
14.6 |
14.4 |
|
42 |
|
|
|
|
|
|
|
|
|
|
13.3 |
13.2 |
|
44 |
|
|
|
|
|
|
|
|
|
|
|
12.1 |
|
Magnification |
18 |
18 |
16 |
14 |
13 |
12 |
11 |
10 |
9 |
9 |
8 |
8 |
