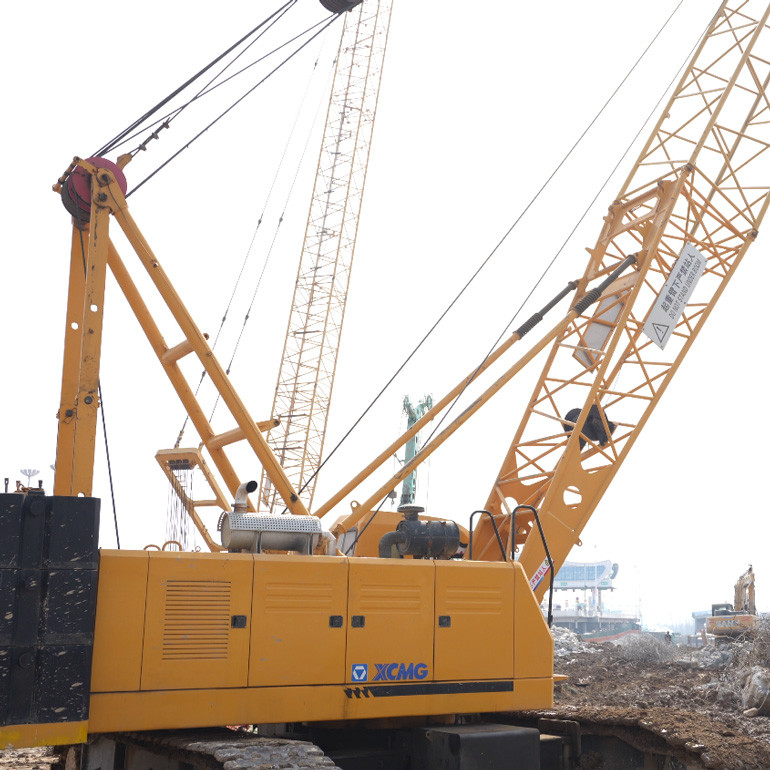

High Altitude 220T Used Crawler Cranes / 1239t.M Boom Crawler Crane
Product Details:
| Place of Origin: | China |
| Brand Name: | XCMG |
| Model Number: | XLC220 |
Payment & Shipping Terms:
| Minimum Order Quantity: | One Crane |
|---|---|
| Price: | Negotiable Price |
| Packaging Details: | Packing According to Customer Requirements |
| Delivery Time: | According to Order Confirmation |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |
|
Detail Information |
|||
| Max Lifting Height: | 93/106.5m | Rated Power: | 360/1800 KW/r/min |
|---|---|---|---|
| Dimension: | 9670*3480*3460mm | Crawler Condition: | 90% New |
| Boom_Length: | 84 Meters | Engine Rated Power: | 199 Kw |
| Jib Angle: | 15,30° | Max_Tip_Height: | 120 Meters |
| Engine Power: | 209 KW | Import: | China |
| Highlight: | 220t used crawler cranes,1239t.m boom crawler crane,220t boom crawler crane |
||
Product Description
When Facing The Challenges Of High-altitude Operations: 220T Crawler Crane Is The Perfect Solution
XLC220 Crawler Crane Technical Specifications
Crawler crane models: XLC220
Max rated lifting capacity: 220t
Max lifting moment: 1239t.m
Typical working conditions
Main boom working condition_HBS/1_65t+21t main boom main hook performance with arm end pulley auxiliary hook
|
Operating radius(m) |
Main boom length(m) |
|||||||||||
|
17 |
20 |
23 |
26 |
29 |
32 |
35 |
38 |
41 |
44 |
47 |
50 |
|
|
5 |
220 |
|
|
|
|
|
|
|
|
|
|
|
|
6 |
196 |
192 |
190.5 |
179 |
|
|
|
|
|
|
|
|
|
7 |
177 |
176 |
174.5 |
170 |
164 |
156 |
144 |
|
|
|
|
|
|
8 |
151 |
151 |
147 |
142 |
138 |
134 |
131 |
127 |
115 |
103 |
|
|
|
9 |
125 |
125 |
125 |
123 |
119 |
116 |
113 |
111 |
108 |
103 |
101 |
|
|
10 |
105 |
106 |
106 |
106 |
105 |
102 |
100 |
98.3 |
96.1 |
94 |
91.9 |
89.9 |
|
12 |
79.8 |
80.2 |
80.5 |
80.6 |
80.7 |
80.7 |
80.7 |
79.5 |
77.9 |
76.4 |
74.9 |
73.4 |
|
14 |
63.5 |
63.9 |
64.2 |
64.3 |
64.4 |
64.4 |
64.4 |
64.3 |
64.2 |
63.9 |
62.8 |
61.6 |
|
16 |
52.2 |
52.7 |
53 |
53.1 |
53.2 |
53.2 |
53.1 |
53.1 |
53 |
52.9 |
52.7 |
52.6 |
|
18 |
|
44.4 |
44.8 |
44.9 |
45 |
45 |
44.9 |
44.8 |
44.7 |
44.6 |
44.5 |
44.4 |
|
20 |
|
|
38.5 |
38.6 |
38.7 |
38.7 |
38.7 |
38.6 |
38.5 |
38.4 |
38.2 |
38.1 |
|
22 |
|
|
|
33.6 |
33.8 |
33.8 |
33.7 |
33.6 |
33.5 |
33.4 |
33.3 |
33.1 |
|
24 |
|
|
|
29.6 |
29.7 |
29.7 |
29.7 |
29.6 |
29.5 |
29.4 |
29.3 |
29.1 |
|
26 |
|
|
|
|
26.4 |
26.4 |
26.4 |
26.3 |
26.2 |
26.1 |
25.9 |
25.8 |
|
28 |
|
|
|
|
|
23.6 |
23.6 |
23.5 |
23.4 |
23.3 |
23.2 |
23 |
|
30 |
|
|
|
|
|
|
21.2 |
21.1 |
21.1 |
20.9 |
20.8 |
20.6 |
|
32 |
|
|
|
|
|
|
19.1 |
19.1 |
19 |
18.9 |
18.7 |
18.6 |
|
34 |
|
|
|
|
|
|
|
17.3 |
17.2 |
17.1 |
17 |
16.8 |
|
36 |
|
|
|
|
|
|
|
|
15.6 |
15.5 |
15.4 |
15.2 |
|
38 |
|
|
|
|
|
|
|
|
|
14.1 |
14 |
13.8 |
|
40 |
|
|
|
|
|
|
|
|
|
12.8 |
12.7 |
12.6 |
|
42 |
|
|
|
|
|
|
|
|
|
|
11.6 |
11.4 |
|
44 |
|
|
|
|
|
|
|
|
|
|
|
10.4 |
|
Magnification |
18 |
18 |
16 |
14 |
13 |
12 |
11 |
10 |
9 |
9 |
8 |
8 |
Notes:
1.When the main boom length exceeds 71m, a waist rope is required for the combination at the "*" position. When the main boom length exceeds 74m, it is recommended to use an inclined wedge to assist in raising the boom.
2.The tower arm rear pull plate needs to be removed from each boom section, and the tower arm guide pulley needs to be removed from the top section of the main boom.
Main boom working condition_HBS/1_65t+21t main boom main hook performance with arm end pulley auxiliary hook
|
Operating radius(m) |
Main boom length(m) |
|||||||||
|
53 |
56 |
59 |
62 |
65 |
68 |
71* |
74* |
77* |
80* |
|
|
10 |
85.4 |
81.5 |
78.5 |
68.5 |
|
|
|
|
|
|
|
12 |
72.3 |
70.9 |
69.5 |
66.5 |
65.5 |
62.6 |
60.2 |
55 |
|
|
|
14 |
60.9 |
59.8 |
58.7 |
57.6 |
56.5 |
55.6 |
54.5 |
53.5 |
48.8 |
44.6 |
|
16 |
52.2 |
51.3 |
50.4 |
49.5 |
48.7 |
47.9 |
47 |
46.3 |
45.5 |
43.3 |
|
18 |
44.5 |
44.4 |
44 |
43.2 |
42.4 |
41.8 |
41 |
40.5 |
39.7 |
39.1 |
|
20 |
38.2 |
38.1 |
37.9 |
37.7 |
37.4 |
36.9 |
36.2 |
35.7 |
35 |
34.5 |
|
22 |
33.2 |
33.1 |
32.9 |
32.7 |
32.5 |
32.4 |
32.1 |
31.7 |
31.1 |
30.7 |
|
24 |
29.2 |
29.1 |
28.9 |
28.7 |
28.5 |
28.4 |
28.1 |
28.1 |
27.8 |
27.4 |
|
26 |
25.9 |
25.8 |
25.6 |
25.4 |
25.2 |
25.1 |
24.8 |
24.8 |
24.6 |
24.4 |
|
28 |
23.1 |
23 |
22.8 |
22.6 |
22.4 |
22.3 |
22 |
22 |
21.8 |
21.6 |
|
30 |
20.8 |
20.6 |
20.4 |
20.2 |
20 |
19.9 |
19.6 |
19.6 |
19.4 |
19.3 |
|
32 |
18.7 |
18.6 |
18.4 |
18.2 |
17.9 |
17.9 |
17.6 |
17.6 |
17.3 |
17.2 |
|
34 |
16.9 |
16.8 |
16.6 |
16.4 |
16.2 |
16.1 |
15.8 |
15.8 |
15.5 |
15.4 |
|
36 |
15.4 |
15.2 |
15 |
14.8 |
14.6 |
14.5 |
14.2 |
14.2 |
14 |
13.8 |
|
38 |
14 |
13.8 |
13.6 |
13.4 |
13.2 |
13.1 |
12.8 |
12.8 |
12.6 |
12.5 |
|
40 |
12.7 |
12.6 |
12.4 |
12.2 |
12 |
11.9 |
11.6 |
11.6 |
11.3 |
11.2 |
|
42 |
11.6 |
11.4 |
11.3 |
11.1 |
10.8 |
10.7 |
10.5 |
10.5 |
10.2 |
10.1 |
|
44 |
10.6 |
10.4 |
10.2 |
10.1 |
9.8 |
9.7 |
9.5 |
9.5 |
9.2 |
9.1 |
|
46 |
9.7 |
9.5 |
9.3 |
9.1 |
8.9 |
8.8 |
8.6 |
8.5 |
8.3 |
8.2 |
|
48 |
|
8.7 |
8.5 |
8.3 |
8.1 |
8 |
7.7 |
7.7 |
7.5 |
7.3 |
|
50 |
|
7.9 |
7.7 |
7.5 |
7.3 |
7.2 |
7 |
6.9 |
6.7 |
6.6 |
|
52 |
|
|
7 |
6.8 |
6.6 |
6.5 |
6.2 |
6.2 |
6 |
5.9 |
|
54 |
|
|
|
6.2 |
5.9 |
5.9 |
5.6 |
5.6 |
5.3 |
5.2 |
|
56 |
|
|
|
|
5.3 |
5.3 |
5 |
5 |
4.7 |
4.6 |
|
58 |
|
|
|
|
4.8 |
4.7 |
4.4 |
4.4 |
4.2 |
4.1 |
|
60 |
|
|
|
|
|
4.2 |
3.9 |
3.9 |
3.7 |
3.5 |
|
62 |
|
|
|
|
|
|
3.4 |
3.4 |
3.2 |
3.1 |
|
64 |
|
|
|
|
|
|
|
3 |
2.7 |
2.6 |
|
66 |
|
|
|
|
|
|
|
2.5 |
2.3 |
2.2 |
|
Magnification |
7 |
6 |
6 |
6 |
5 |
5 |
5 |
4 |
4 |
4 |
Notes:
1.When the main boom length exceeds 71m, a waist rope is required for the combination at the "*" position. When the main boom length exceeds 74m, it is recommended to use an inclined wedge to assist in raising the boom.
2.The tower arm rear pull plate needs to be removed from each boom section, and the tower arm guide pulley needs to be removed from the top section of the main boom.
