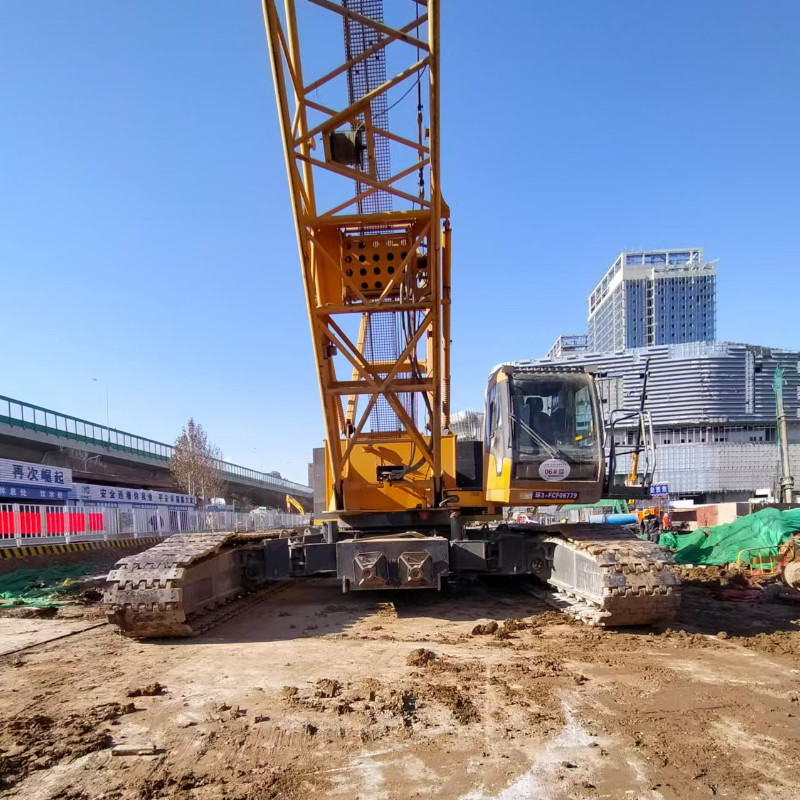

XGC130 Affordable Hydraulic Crawler Crane For Various Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | XCMG |
| Model Number: | XGC130 |
Payment & Shipping Terms:
| Minimum Order Quantity: | One Crane |
|---|---|
| Price: | Negotiable Price |
| Packaging Details: | Packing According to Customer Requirements |
| Delivery Time: | According to Order Confirmation |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |
|
Detail Information |
|||
| Transport Dimensions: | 15.5m X 3.5m X 3.5m | Hardness: | 52-58HRC |
|---|---|---|---|
| Travelling Speed: | 0-1.6m | Track Width: | 1.5 Meters |
| Swing Speed: | 0-2.1rpm | Hydraulic Pump Brand: | TOP BRAND |
| Boom Length: | 60 Meters | Control System: | Hydraulic |
| Condition: | Good Working Condition | Max Gradeability: | 40% |
| Highlight: | XGC130 hydraulic crawler crane,Affordable hydraulic crawler crane,XGC130 used crawler cranes for sale |
||
Product Description
Affordable Hydraulic Crawler Crane For Various Applications
XGC130 Hydraulic crawler crane
Lifting performance
Main boom working range diagram
Main boom working range diagram
Main boom load table
Main boom load table (load unit t)
|
|
Boom length(m) |
||||||||||
|
Radians(m) |
16 |
19 |
22 |
25 |
28 |
31 |
34 |
37 |
40 |
43 |
46 |
|
4.6 |
135 |
|
|
|
|
|
|
|
|
|
|
|
5 |
132 |
130 |
|
|
|
|
|
|
|
|
|
|
6 |
120 |
119.5 |
118 |
115.7 |
|
|
|
|
|
|
|
|
7 |
101 |
100.5 |
98.7 |
98.5 |
98.5 |
87.9 |
|
|
|
|
|
|
8 |
86.8 |
86.7 |
86 |
84.4 |
83 |
81.4 |
79.8 |
75.8 |
|
|
|
|
9 |
75.1 |
74.2 |
73 |
71.8 |
70.6 |
69.4 |
68.2 |
67 |
66 |
64.8 |
|
|
10 |
64 |
63.8 |
63.3 |
62.3 |
61.4 |
60.4 |
59.4 |
58.5 |
57.5 |
56.6 |
54.9 |
|
12 |
49.1 |
49.1 |
49 |
49 |
48.6 |
47.8 |
47.1 |
46.3 |
45.7 |
45 |
45 |
|
14 |
39.7 |
39.7 |
39.7 |
39.5 |
39.5 |
39.4 |
38.8 |
38.2 |
37.8 |
37.2 |
37.2 |
|
16 |
|
33 |
33.2 |
33.2 |
33.2 |
33 |
32.9 |
32.4 |
32 |
31.4 |
31.2 |
|
18 |
|
|
28.3 |
28.3 |
28.3 |
28.1 |
28 |
27.9 |
27.6 |
27.2 |
27.1 |
|
20 |
|
|
24.6 |
24.5 |
24.6 |
24.5 |
24.3 |
24.2 |
24.2 |
23.8 |
23.8 |
|
22 |
|
|
|
21.6 |
21.6 |
21.6 |
21.3 |
21.2 |
21.2 |
21 |
20.9 |
|
24 |
|
|
|
|
19.2 |
19.1 |
18.9 |
18.8 |
18.8 |
18.7 |
18.4 |
|
26 |
|
|
|
|
|
17.1 |
16.9 |
16.8 |
16.8 |
16.7 |
16.4 |
|
28 |
|
|
|
|
|
|
15.2 |
15.1 |
15.1 |
15 |
14.8 |
|
30 |
|
|
|
|
|
|
13.8 |
13.6 |
13.6 |
13.5 |
13.4 |
|
32 |
|
|
|
|
|
|
|
12.5 |
12.5 |
12.3 |
12.1 |
|
34 |
|
|
|
|
|
|
|
|
11.3 |
11.1 |
11 |
|
36 |
|
|
|
|
|
|
|
|
|
10.2 |
10.1 |
|
38 |
|
|
|
|
|
|
|
|
|
9.4 |
9.2 |
|
40 |
|
|
|
|
|
|
|
|
|
|
8.5 |
|
Counter weight |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
|
Magnification |
14 |
14 |
12 |
11 |
10 |
9 |
8 |
7 |
6 |
6 |
5 |
|
|
Boom length(m) |
|||||||||
|
Radians(m) |
49 |
52 |
55 |
58 |
61 |
64 |
67 |
70 |
73 |
76 |
|
10 |
54.5 |
|
|
|
|
|
|
|
|
|
|
12 |
45 |
45 |
44.3 |
41.7 |
36.5 |
|
|
|
|
|
|
14 |
37.2 |
37.1 |
37 |
36.5 |
35.6 |
30.6 |
28.4 |
23.9 |
19.9 |
|
|
16 |
31.1 |
31 |
31 |
30.7 |
30.3 |
29.9 |
28.4 |
23.9 |
19.4 |
16.7 |
|
18 |
27.1 |
27.1 |
26.8 |
26.4 |
26 |
25.8 |
26.2 |
22.4 |
18.9 |
16.2 |
|
20 |
23.7 |
23.7 |
23.4 |
23 |
22.6 |
22.3 |
22.7 |
20.8 |
18.2 |
15.7 |
|
22 |
20.6 |
20.6 |
20.5 |
20.2 |
20 |
19.7 |
19.4 |
19.1 |
17.6 |
15.2 |
|
24 |
18.3 |
18.3 |
18.1 |
17.9 |
17.7 |
17.5 |
17.2 |
16.8 |
16.7 |
14.6 |
|
26 |
16.3 |
16.1 |
16 |
15.9 |
15.6 |
15.6 |
15.4 |
15 |
14.8 |
14.1 |
|
28 |
14.6 |
14.6 |
14.4 |
14.2 |
14 |
13.9 |
13.8 |
13.5 |
13.2 |
12.9 |
|
30 |
13.1 |
13.1 |
13 |
12.7 |
12.6 |
12.5 |
12.3 |
12.1 |
11.9 |
11.5 |
|
32 |
11.9 |
11.8 |
11.7 |
11.5 |
11.3 |
11.3 |
11.1 |
10.9 |
10.7 |
10.3 |
|
34 |
10.9 |
10.7 |
10.6 |
10.5 |
10.2 |
10.1 |
10 |
9.7 |
9.7 |
9.3 |
|
36 |
10 |
9.8 |
9.7 |
9.4 |
9.3 |
9.2 |
9 |
8.8 |
8.8 |
8.4 |
|
38 |
9 |
9 |
8.9 |
8.6 |
8.4 |
8.4 |
8.2 |
8 |
7.8 |
7.6 |
|
40 |
8.2 |
8.2 |
8.1 |
7.8 |
7.7 |
7.6 |
7.4 |
7.2 |
7.2 |
7 |
|
42 |
7.6 |
7.6 |
7.4 |
7.2 |
7.1 |
6.9 |
6.8 |
6.5 |
6.5 |
6.35 |
|
44 |
|
6.9 |
6.8 |
6.5 |
6.4 |
6.3 |
6.3 |
6 |
5.9 |
5.75 |
|
46 |
|
6.4 |
6.3 |
6 |
5.9 |
5.9 |
5.7 |
5.5 |
5.3 |
5.2 |
|
48 |
|
|
5.7 |
5.6 |
5.3 |
5.3 |
5.2 |
4.9 |
4.9 |
4.75 |
|
50 |
|
|
|
5.1 |
4.9 |
4.9 |
4.8 |
4.5 |
4.4 |
4.3 |
|
52 |
|
|
|
|
4.5 |
4.4 |
4.4 |
4.2 |
4 |
3.9 |
|
54 |
|
|
|
|
|
4.2 |
4 |
3.8 |
3.8 |
3.55 |
|
56 |
|
|
|
|
|
3.8 |
3.6 |
3.5 |
3.4 |
3.15 |
|
58 |
|
|
|
|
|
|
3.4 |
3.1 |
3.1 |
2.9 |
|
60 |
|
|
|
|
|
|
|
2.8 |
2.7 |
2.5 |
|
62 |
|
|
|
|
|
|
|
|
2.4 |
2.25 |
|
64 |
|
|
|
|
|
|
|
|
2.2 |
1.95 |
|
66 |
|
|
|
|
|
|
|
|
|
1.7 |
|
Counter weight |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
|
Magnification |
5 |
5 |
4 |
4 |
4 |
3 |
3 |
3 |
2 |
2 |
