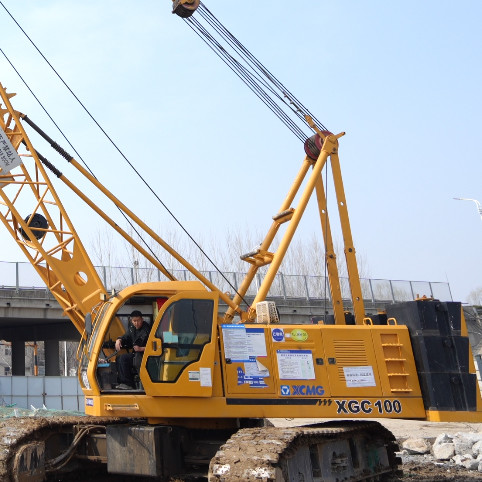

XCMG 100T Used Crawler Cranes 1.5km/H Travel_Speed For Mining
Product Details:
| Place of Origin: | China |
| Brand Name: | XCMG |
| Model Number: | XGC100A |
Payment & Shipping Terms:
| Minimum Order Quantity: | One Crane |
|---|---|
| Price: | Negotiable Price |
| Packaging Details: | Packing According to Customer Requirements |
| Delivery Time: | According to Order Confirmation |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |
|
Detail Information |
|||
| Max_Gradeability: | 30% | Max_Overall_Height: | 3.5m |
|---|---|---|---|
| Max_Overall_Width: | 3m | Max_Ground_Pressure: | 0.9kg/cm² |
| Max_Track_Shoe_Width: | 0.5m | Max_Lifting_Height: | 80m |
| Max_Track_Shoe_Length: | 4m | Max_Track_Shoe_Number: | 50 |
| Max_Overall_Length: | 12m | Max_Track_Shoe_Ground_Contact_Length: | 6m |
| Product_Name: | 100T Crawler Crane | Engine_Power: | 400kW |
| Max_Load_Capacity: | 100T | Max_Travel_Speed: | 1.5km/h |
| Highlight: | 100t used crawler cranes,used crawler cranes 1.5km/h,100t xcmg crawler cranes |
||
Product Description
Used 100T Crawler Crane Can Effectively Carry Out Mining Operations
XGC100A Crawler Crane Technical Specifications
Crawler crane models: XGC100A
Max rated lifting capacity: 100t/4m
Max rated lifting moment: 425 t.m
The longest combination of main boom working conditions: 61 m
The longest combination of single pulley working condition at the main boom end: Boom 61 m+Single pulley at arm end 1.1 m
The longest combination of fixed jib working conditions: Boom 52 m +fixed jib 19 m
Max transportation weight per piece: 24.1t
Max transport width per piece: 3.4m
Max transport height per piece: 3.04m
Typical working condition lifting performance table
Crane working range diagram: crane working range diagram for main boom working condition
Working range of crane with fixed jib (10°and 30°installation angle)
XGC100A Main boom performance table (without single pulley and hook at the arm end)
|
Table 1-1 XGC100A Main boom performance table (without single pulley and hook at the arm end) Unit:t counterweight 34t |
|||||||||
|
Radius(m) |
Main boom length(m) |
||||||||
|
|
13 |
16 |
19 |
22 |
25 |
28 |
31 |
34 |
37 |
|
4 |
100.0** |
|
|
|
|
|
|
|
|
|
5 |
84.9* |
81.5* |
77.1* |
|
|
|
|
|
|
|
6 |
67.3* |
64.5* |
61.6* |
62.6 |
60.0 |
|
|
|
|
|
7 |
52.4* |
52.3* |
54.4 |
52.4 |
50.4 |
48.6 |
47.0 |
|
|
|
8 |
42.7* |
45.3 |
45.3 |
44.9 |
43.4 |
42.1 |
41.0 |
39.4 |
38.2 |
|
9 |
38.3 |
38.2 |
38.1 |
38.1 |
38.0 |
37.0 |
35.9 |
34.9 |
33.9 |
|
10 |
33.0 |
32.9 |
32.9 |
32.8 |
32.7 |
32.6 |
32.0 |
31.1 |
30.3 |
|
12 |
25.8 |
25.7 |
25.6 |
25.5 |
25.4 |
25.4 |
25.3 |
25.1 |
25.0 |
|
14 |
|
20.9 |
20.9 |
20.8 |
20.7 |
20.6 |
20.5 |
20.4 |
20.3 |
|
16 |
|
|
17.5 |
17.4 |
17.3 |
17.2 |
17.1 |
17.0 |
16.9 |
|
18 |
|
|
|
14.9 |
14.8 |
14.7 |
14.6 |
14.5 |
14.4 |
|
20 |
|
|
|
13.0 |
12.9 |
12.8 |
12.7 |
12.5 |
12.4 |
|
22 |
|
|
|
|
11.3 |
11.2 |
11.1 |
11.0 |
10.9 |
|
24 |
|
|
|
|
|
10.0 |
9.9 |
9.7 |
9.6 |
|
26 |
|
|
|
|
|
|
8.8 |
8.7 |
8.6 |
|
28 |
|
|
|
|
|
|
7.9 |
7.8 |
7.7 |
|
30 |
|
|
|
|
|
|
|
7.0 |
6.9 |
|
32 |
|
|
|
|
|
|
|
|
6.3 |
※The counterweight behind the turntable with "**" in the table is 27t, and the counterweight behind the turntable with "*" is 31t
