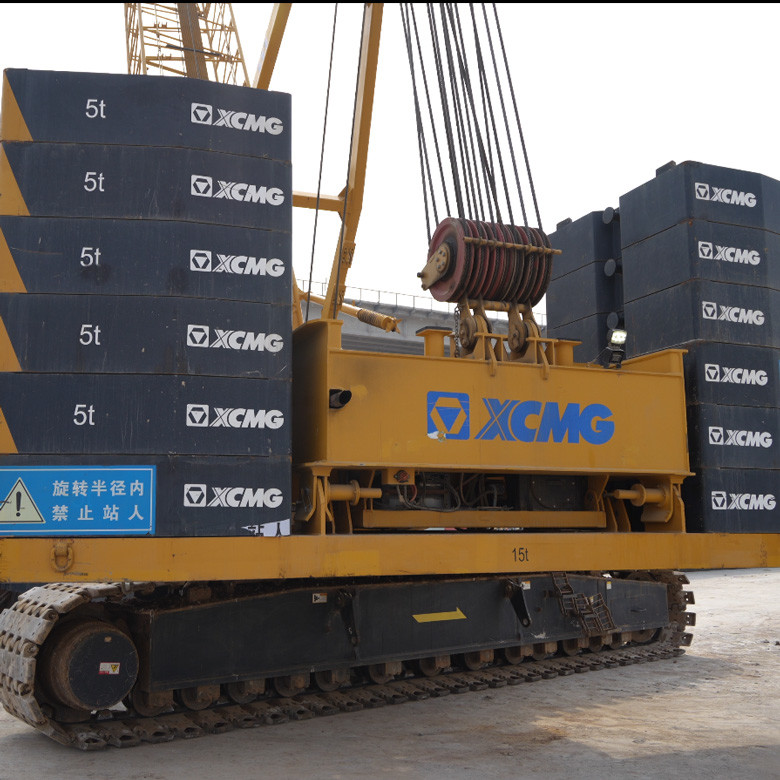

heavy Used 300t Crawler Crane Used To Install Large Equipment In Factories And Facilities
Product Details:
| Place of Origin: | China |
| Brand Name: | XCMG |
| Model Number: | XGC 300t |
Payment & Shipping Terms:
| Minimum Order Quantity: | One Crane |
|---|---|
| Price: | Negotiable Price |
| Packaging Details: | Packing According to Customer Requirement |
| Delivery Time: | According to Order Confirmation |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |
|
Detail Information |
|||
| Maximum Line Speed: | 120 M/min | Counterweight: | 120,000 Kg |
|---|---|---|---|
| Maximum Lifting Height: | 144m | Jib Length: | 12-36m |
| Maximum Lifting Radius: | 96m | Maximum Radius: | 80 M |
| Maximum Tip Height: | 152 M | Model: | XGC300 |
| Boom Length: | 18-96m | Hydraulic System Pressure: | 31.5MPa |
| Engine Power: | 242kW | Fuel Tank Capacity: | 800L |
| Crawler Length: | 10.5 M | Maximum Lifting Speed: | 120m/min |
| Highlight: | heavy 300T Crawler Crane,300t xcmg heavy crawler crane |
||
Product Description
XGC 300t(-I)Crawler Crane Technical Specifications
Crawler crane models: XGC 300t(-I)
Max rated lifting capacity: 300t
Maximum lifting moment: 1865t.m
Tower type working condition_no main boom pulley block and tower boom single pulley HW/1_85°_115t+40t_37m tower boom main hook performance
|
Main boom length(m) |
37 |
|||||||
|
HW/1 |
Tower arm length(m) |
|||||||
|
Radians |
24 |
30 |
36 |
42 |
48 |
54 |
◇60 |
☆66 |
|
(m) |
t |
t |
t |
t |
t |
t |
t |
t |
|
13 |
92.0 |
|
|
|
|
|
|
|
|
14 |
90.0 |
|
|
|
|
|
|
|
|
15 |
87.8 |
76.0 |
|
|
|
|
|
|
|
16 |
86.8 |
75.0 |
|
|
|
|
|
|
|
17 |
85.6 |
73.8 |
65.2 |
|
|
|
|
|
|
18 |
76.5 |
72.7 |
64.0 |
56.7 |
|
|
|
|
|
19 |
72.5 |
68.2 |
63.0 |
55.5 |
|
|
|
|
|
20 |
68.9 |
66.9 |
61.0 |
53.0 |
47.0 |
|
|
|
|
22 |
61.8 |
60.9 |
57.7 |
52.0 |
45.8 |
39.1 |
|
|
|
24 |
55.5 |
55.2 |
54.5 |
50.0 |
44.2 |
38.7 |
31.8 |
26.3 |
|
26 |
50.2 |
50.0 |
49.7 |
48.7 |
43.0 |
38.3 |
31.4 |
25.9 |
|
28 |
45.9 |
45.7 |
45.4 |
45.0 |
41.2 |
37.9 |
31.0 |
25.5 |
|
30 |
|
41.9 |
41.7 |
41.3 |
40.9 |
36.1 |
30.5 |
25.1 |
|
32 |
|
38.7 |
38.5 |
38.1 |
38.0 |
34.4 |
29.8 |
24.5 |
|
34 |
|
35.9 |
35.7 |
35.3 |
35.1 |
34.1 |
29.3 |
24.2 |
|
36 |
|
|
33.3 |
32.9 |
32.6 |
32.2 |
29.1 |
24.0 |
|
38 |
|
|
31.1 |
30.8 |
30.4 |
30.0 |
28.2 |
23.9 |
|
40 |
|
|
|
28.8 |
28.5 |
28.1 |
26.9 |
22.7 |
|
42 |
|
|
|
27.1 |
26.8 |
26.5 |
25.5 |
21.6 |
|
44 |
|
|
|
25.5 |
25.3 |
25.0 |
24.1 |
20.5 |
|
46 |
|
|
|
|
23.9 |
23.5 |
22.6 |
19.4 |
|
48 |
|
|
|
|
22.6 |
22.1 |
21.3 |
18.1 |
|
50 |
|
|
|
|
21.0 |
20.8 |
19.9 |
17.0 |
|
52 |
|
|
|
|
|
19.2 |
18.6 |
15.9 |
|
54 |
|
|
|
|
|
17.8 |
17.3 |
14.9 |
|
56 |
|
|
|
|
|
16.4 |
16.2 |
13.8 |
|
58 |
|
|
|
|
|
|
15.0 |
12.9 |
|
60 |
|
|
|
|
|
|
13.9 |
12.0 |
|
64 |
|
|
|
|
|
|
|
10.4 |
|
68 |
|
|
|
|
|
|
|
9.0 |
Notes:
1.◇--Tower-arm combination requires a 2.59m waist rope; ☆--Tower-arm combination requires a 3.58m waist rope.
2. The main boom section needs to remove the rear pull plate that fixes the auxiliary boom, and the main boom reducer needs to install the tower arm guide pulley.
3. When raising the boom, please place the crawler drive wheel behind the vehicle body, and it is recommended to use an auxiliary crane or inclined wedge to assist in raising the boom.
Tower working condition_no main boom pulley block and tower boom single pulley HW/1_85°_115t+40t_49m tower boom main hook performance
|
Main boom length(m) |
49 |
|||||||
|
HW/1 |
Tower arm length(m) |
|||||||
|
Radians |
24 |
30 |
36 |
42 |
48 |
54 |
◇60 |
☆66 |
|
(m) |
t |
t |
t |
t |
t |
t |
t |
t |
|
14 |
83.5 |
|
|
|
|
|
|
|
|
15 |
80.6 |
|
|
|
|
|
|
|
|
16 |
80.1 |
70.0 |
|
|
|
|
|
|
|
17 |
78.2 |
68.0 |
|
|
|
|
|
|
|
18 |
71.6 |
66.3 |
58.0 |
|
|
|
|
|
|
19 |
68.1 |
66.1 |
57.0 |
49.0 |
|
|
|
|
|
20 |
64.8 |
60.7 |
56.6 |
48.5 |
|
|
|
|
|
22 |
59.1 |
57.4 |
54.2 |
48.0 |
41.2 |
35.0 |
|
|
|
24 |
54.4 |
52.8 |
48.0 |
46.0 |
40.0 |
34.0 |
28.6 |
|
|
26 |
49.9 |
48.8 |
47.6 |
41.9 |
38.0 |
33.0 |
28.0 |
23.6 |
|
28 |
45.5 |
45.2 |
44.2 |
39.5 |
36.0 |
31.4 |
27.0 |
23.4 |
|
30 |
|
41.5 |
40.6 |
38.7 |
33.6 |
30.0 |
26.4 |
23.0 |
|
32 |
|
37.4 |
36.9 |
35.6 |
32.6 |
28.4 |
26.0 |
22.5 |
|
34 |
|
33.7 |
33.6 |
32.7 |
31.2 |
27.1 |
25.0 |
21.5 |
|
36 |
|
|
30.5 |
30.0 |
28.8 |
26.7 |
23.4 |
19.7 |
|
38 |
|
|
27.8 |
27.4 |
26.6 |
25.3 |
22.1 |
19.0 |
|
40 |
|
|
25.1 |
25.1 |
24.5 |
23.5 |
22.0 |
18.7 |
|
42 |
|
|
|
22.9 |
22.6 |
21.8 |
20.6 |
17.8 |
|
44 |
|
|
|
21.0 |
20.8 |
20.1 |
19.2 |
17.6 |
|
46 |
|
|
|
19.1 |
19.1 |
18.6 |
17.8 |
16.6 |
|
48 |
|
|
|
|
17.6 |
17.2 |
16.6 |
15.6 |
|
50 |
|
|
|
|
16.0 |
15.8 |
15.4 |
14.5 |
|
52 |
|
|
|
|
14.7 |
14.6 |
14.2 |
13.4 |
|
54 |
|
|
|
|
|
13.3 |
13.0 |
12.5 |
|
56 |
|
|
|
|
|
12.3 |
12.1 |
11.5 |
|
58 |
|
|
|
|
|
|
11.1 |
10.7 |
|
60 |
|
|
|
|
|
|
10.1 |
9.8 |
|
64 |
|
|
|
|
|
|
|
8.3 |
|
68 |
|
|
|
|
|
|
|
6.8 |
Notes:
1.◇--Tower-arm combination requires a 2.59m waist rope; ☆--Tower-arm combination requires a 3.58m waist rope.
2. The main boom section needs to remove the rear pull plate that fixes the auxiliary boom, and the main boom reducer needs to install the tower arm guide pulley.
3. When raising the boom, please place the crawler drive wheel behind the vehicle body, and it is recommended to use an auxiliary crane or inclined wedge to assist in raising the boom.
