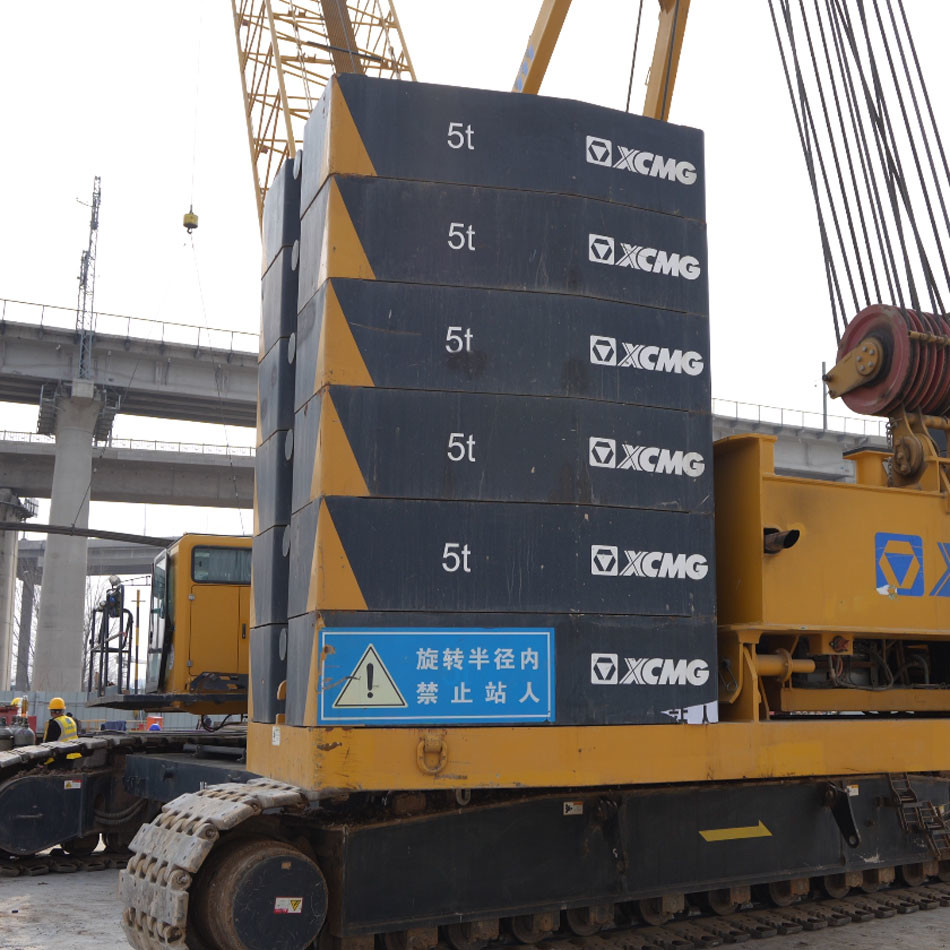

XGC 300t Crawler Crane Xcmg For Large Projects
Product Details:
| Place of Origin: | China |
| Brand Name: | XCMG |
| Model Number: | XGC 300t |
Payment & Shipping Terms:
| Minimum Order Quantity: | One Crane |
|---|---|
| Price: | Negotiable Price |
| Packaging Details: | Packing According to Customer Requirements |
| Delivery Time: | According to Order Confirmation |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |
|
Detail Information |
|||
| Max. Lifting Height: | 120m | Maximum Lifting Capacity: | 300 Tons |
|---|---|---|---|
| Maximum Radius: | 80 M | Max. Gradeability: | 30% |
| Crawler Length: | 10.5 M | Model: | XGC300 |
| Boom Length: | 18-96m | Maximum Tip Height: | 152 M |
| Counterweight: | 100 Tons | Max. Line Speed: | 120m/min |
| Fuel Tank Capacity: | 1,500 Liters | Max. Slewing Speed: | 1.5rpm |
| Highlight: | 300t crawler crane xcmg,large projects crawler crane xcmg |
||
Product Description
Crawler Crane 1.5m-4.5m Arm Connection Sections And Main Boom Assembly For 300t Max Rated Lifting Capacity.
XGC 300t(-I)Crawler Crane Technical Specifications
Crawler crane models: XGC 300t(-I)
Max rated lifting capacity: 300t
Maximum lifting moment: 1865t.m
Shield working conditions
A. Shield working conditions_main boom section combination table
Name and quantity Main boom assembly | Main boom bottom section 10.5m | Main boom middle section 3m | Main boom middle section 6m | Main boom middle section 12mA | Main boom tapered section 7m | Main arm connection section 1.5 | Boom pulley block |
HB19 | 1 | 0 | 0 | 0 | 1 | 1 | 1 |
HB22 | 1 | 1 | 0 | 0 | 1 | 1 | 1 |
HB25 | 1 | 2[0] | 0[1] | 0 | 1 | 1 | 1 |
HB28 | 1 | 3[1] | 0[1] | 0 | 1 | 1 | 1 |
HB31 | 1 | 2[0] | 1[0] | 0[1] | 1 | 1 | 1 |
Notes:
1.The rear pull plates of the tower arm need to be removed from each boom section, and the guide pulleys for the tower arm need to be removed from the main boom reducer section.
2.Two main boom intermediate sections 3m can be used to replace one main boom intermediate section 6m, or two main boom intermediate sections 3m and one main boom intermediate section 6m can be used to replace one main boom intermediate section 12mA. When replacing, attention must be paid to the matching of the number of pull plates and pins.
B. Shield working conditions_Shield auxiliary arm section combination table
Name and quantity | Shield arm bottom section4.5m | Shield arm middle section 3m | Shield arm middle section 6m | Shield arm top section 2.5m | Shield arm single pulley |
F(S) 7 | 1 | 0 | 0 | 1 | (1) |
F(S)10 | 1 | 1 | 0 | 1 | (1) |
Notes:
1. (S) ---- indicates the optional single pulley of the shield jib [single pulley of the shield arm and single pulley of the fixed jib].
2. The shield jib section is common to the fixed jib section.
3. To ensure the maximum function of the arm combination, it is recommended that users choose to purchase the shield jib length of 7m.
C. Shield working condition arm table
Turntable counterweight 115t + vehicle body counterweight 40t | Main boom length | ||||
Shield arm length | HB19 | HB22 | HB25 | HB28 | HB31 |
F(S) 7 | ● | ● | ● | ● | ● |
F(S)10 | ● | ● | ● | ● | ● |
Notes:
1. “●” - The boom can be raised.
2. The rear pull plates of the tower arm need to be removed from each boom section, and the guide pulleys for installing the tower arm need to be removed from the main boom reducer.
3. A 260t hook is recommended for the main boom and a 160t hook is recommended for the shield auxiliary boom.
4. When raising the boom, please place the crawler drive wheel behind the vehicle body.
